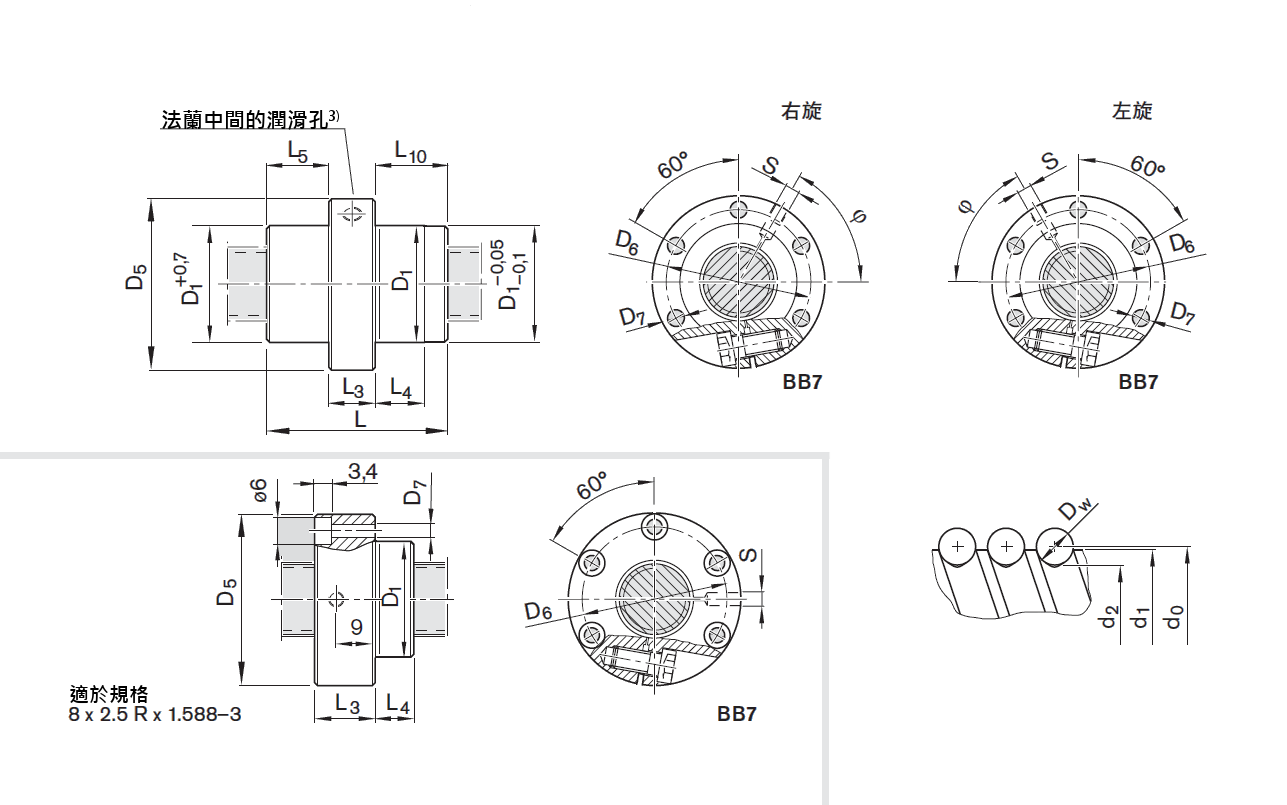

可調式無間隙單螺母 SEM-E-S
|
型號 |
規格 |
尺寸(mm) |
|||||||||||||
|
d0 |
P |
d1 |
d2 |
D1 |
D5 |
孔圖 |
D6 |
D7 |
L |
L3 |
L4 |
L5 |
L10 |
S3) |
|
|
R1532 230 04 |
8 |
2.5R |
7.5 |
6.3 |
16 |
30 |
BB7 |
23 |
3.4 |
16 |
13 |
3.0 |
- |
3.0 |
M4 |
|
R1532 460 24 |
12 |
5R |
11.4 |
9.9 |
24 |
40 |
BB7 |
32 |
4.5 |
28 |
12 |
8.0 |
8.0 |
8.0 |
M6 |
|
R1532 490 14 |
12 |
10R |
11.4 |
9.9 |
24 |
40 |
BB7 |
32 |
4.5 |
33 |
12 |
10.5 |
10.5 |
10.5 |
M6 |
|
R1512 010 24 |
16 |
5R |
15.0 |
12.9 |
28 |
53 |
BB7 |
40 |
6.6 |
38 |
15 |
10.0 |
11.5 |
11.5 |
M6 |
|
R1512 040 14 |
16 |
10R |
15.0 |
12.9 |
28 |
53 |
BB7 |
40 |
6.6 |
45 |
15 |
15.0 |
15.0 |
15.0 |
M6 |
|
R1512 060 14 |
16 |
16R |
15.0 |
12.9 |
33 |
58 |
BB7 |
45 |
6.6 |
45 |
15 |
15.0 |
15.0 |
15.0 |
M6 |
|
R1512 110 14 |
20 |
5R |
19.0 |
16.9 |
33 |
58 |
BB7 |
45 |
6.6 |
40 |
15 |
10.0 |
12.5 |
12.5 |
M6 |
|
R1512 170 14 |
20 |
20R |
19.0 |
16.7 |
38 |
63 |
BB7 |
50 |
6.6 |
57 |
20 |
18.5 |
18.5 |
18.5 |
M6 |
|
R1512 210 14 |
25 |
5R |
24.0 |
21.9 |
38 |
63 |
BB7 |
50 |
6.6 |
45 |
20 |
10.0 |
12.5 |
12.5 |
M6 |
|
R1512 240 14 |
25 |
10R |
24.0 |
21.9 |
38 |
63 |
BB7 |
50 |
6.6 |
64 |
20 |
16.0 |
22.0 |
22.0 |
M6 |
|
R1512 280 14 |
25 |
25R |
24.0 |
21.4 |
48 |
73 |
BB7 |
60 |
6.6 |
70 |
25 |
22.5 |
22.5 |
22.5 |
M6 |
|
R1512 310 14 |
32 |
5R |
31.0 |
28.4 |
48 |
73 |
BB7 |
60 |
6.6 |
48 |
20 |
10.0 |
14.0 |
14.0 |
M6 |
|
R1552 310 04 |
32 |
5L |
31.0 |
28.4 |
48 |
73 |
BB7 |
60 |
6.6 |
48 |
20 |
10.0 |
14.0 |
14.0 |
M6 |
|
R1512 340 14 |
32 |
10R |
31.0 |
27.9 |
48 |
73 |
BB7 |
60 |
6.6 |
77 |
20 |
16.0 |
28.5 |
28.5 |
M6 |
|
R1512 370 14 |
32 |
20R |
31.0 |
27.9 |
56 |
80 |
BB7 |
68 |
6.6 |
64 |
20 |
22.0 |
22.0 |
22.0 |
M6 |
|
R1512 390 14 |
32 |
32R |
31.0 |
27.9 |
56 |
80 |
BB7 |
68 |
6.6 |
88 |
20 |
34.0 |
34.0 |
34.0 |
M6 |
|
R1512 410 14 |
40 |
5R |
39.0 |
36.4 |
56 |
80 |
BB7 |
68 |
6.6 |
54 |
20 |
10.0 |
17.0 |
17.0 |
M8x1 |
|
R1552 410 04 |
40 |
5L |
39.0 |
36.4 |
56 |
80 |
BB7 |
68 |
6.6 |
54 |
20 |
10.0 |
17.0 |
17.0 |
M8x1 |
|
R1512 440 14 |
40 |
10R |
38.0 |
33.8 |
63 |
95 |
BB7 |
78 |
9.0 |
70 |
25 |
16.0 |
22.5 |
22.5 |
M8x1 |
|
R1552 440 04 |
40 |
10L |
38.0 |
33.8 |
63 |
95 |
BB7 |
78 |
9.0 |
70 |
25 |
16.0 |
22.5 |
22.5 |
M8x1 |
|
R1512 470 14 |
40 |
20R |
38.0 |
33.8 |
63 |
95 |
BB7 |
78 |
9.0 |
88 |
25 |
25.0 |
31.5 |
31.5 |
M8x1 |
|
R1512 490 14 |
40 |
40R |
38.0 |
33.8 |
72 |
110 |
BB7 |
90 |
11.0 |
102 |
40 |
31.0 |
31.0 |
31.0 |
M8x1 |
|
R1512 510 14 |
50 |
5R |
49.0 |
46.4 |
68 |
98 |
BB7 |
82 |
9.0 |
54 |
25 |
10.0 |
14.5 |
14.5 |
M8x1 |
|
R1512 540 14 |
50 |
10R |
48.0 |
43.8 |
72 |
110 |
BB7 |
90 |
11.0 |
90 |
30 |
16.0 |
30.0 |
30.0 |
M8x1 |
|
R1512 570 14 |
50 |
20R |
48.0 |
43.4 |
85 |
125 |
BB7 |
105 |
11.0 |
92 |
30 |
25.0 |
31.0 |
31.0 |
M8x1 |
|
R1512 590 14 |
50 |
40R |
48.0 |
43.4 |
85 |
125 |
BB7 |
105 |
11.0 |
109 |
30 |
39.5 |
39.5 |
39.5 |
M8x1 |
|
R1512 640 14 |
63 |
10R |
61.0 |
56.8 |
85 |
125 |
BB7 |
105 |
11.0 |
90 |
30 |
16.0 |
30.0 |
30.0 |
M8x1 |
|
R1512 670 14 |
63 |
20R |
61.0 |
56.4 |
95 |
140 |
BB7 |
118 |
14.0 |
92 |
30 |
25.0 |
31.0 |
31.0 |
M8x1 |
|
R1512 690 14 |
63 |
40R |
61.0 |
56.4 |
95 |
140 |
BB7 |
118 |
14.0 |
109 |
30 |
39.5 |
39.5 |
39.5 |
M8x1 |
|
R1512 740 14 |
80 |
10R |
78.0 |
73.3 |
105 |
150 |
BB7 |
125 |
14.0 |
95 |
30 |
16.0 |
32.5 |
32.5 |
M8x1 |
|
R1512 770 24 |
80 |
20R |
76.0 |
67.0 |
125 |
180 |
BB7 |
152 |
18.0 |
170 |
50 |
25.0 |
60.0 |
60.0 |
M8x1 |
*螺母 80 x 20R 配用滾珠螺桿最大長度可達2500mm，帶預緊。
*潤滑口的款式：
L3 ≤ 13mm時，平面；
L3＞14mm時，沉孔。
對於規格 8 x 2.5，提供喇叭形潤滑嘴(DIN 3405)。
