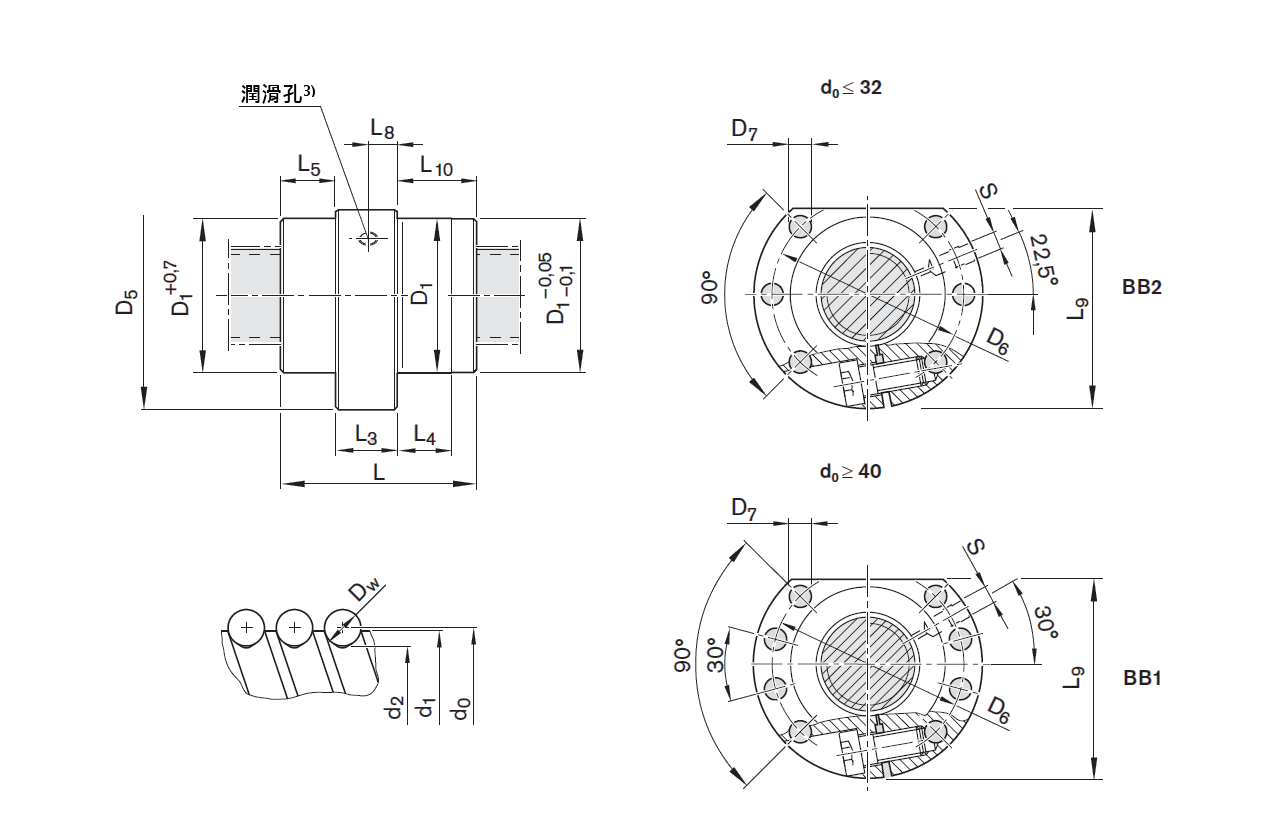

可調式無間隙單螺母 SEM-E-C


型號

規格

尺寸(mm)

d0

P

d1

D5

類型

D6

D7

L

L3

L4

L5

L8

L9

L10

S3)

R1512 010 55

16

5R

15.0

48

BB2

38

5.5

38

15

10

11.5

7.1

44.0

11.5

M6

R1512 040 75

16

10R

15.0

48

BB2

38

5.5

45

15

15

15.0

11.0

44.0

15.0

M6

R1512 060 55

16

16R

15.0

48

BB2

38

5.5

61

15

20

23.0

10.0

44.0

23.0

M6

R1512 110 75

20

5R

19.0

58

BB2

47

6.6

40

15

10

12.5

7.1

51.0

12.5

M6

R1512 170 55

20

20R

19.0

58

BB2

47

6.6

77

20

25

28.5

12.5

51.0

28.5

M6

R1512 210 75

25

5R

24.0

62

BB2

51

6.6

45

20

10

12.5

9.5

55.0

12.5

M6

R1512 240 75

25

10R

24.0

62

BB2

51

6.6

64

20

16

22.0

10.0

55.0

22.0

M6

R1512 280 55

25

25R

24.0

62

BB2

51

6.6

95

25

30

35.0

14.0

55.0

35.0

M6

R1512 310 75

32

5R

31.0

80

BB2

65

9.0

48

20

10

14.0

9.7

71.0

14.0

M6

R1512 340 75

32

10R

31.0

80

BB2

65

9.0

77

20

16

28.5

12.5

71.0

28.5

M6

R1512 370 55

32

20R

31.0

80

BB2

65

9.0

84

20

25

32.0

12.5

71.0

32.0

M6

R1512 390 55

32

32R

31.0

80

BB2

65

9.0

120

20

40

50.0

12.5

71.0

50.0

M6

R1512 410 75

40

5R

39.0

93

BB1

78

9.0

54

25

10

14.5

12.0

81.5

14.5

M8x1

R1512 440 75

40

10R

38.0

93

BB1

78

9.0

70

25

16

22.5

11.8

81.5

22.5

M8x1

R1512 450 55

40

12R

38.0

93

BB1

78

9.0

75

25

25

25.0

12.5

81.5

25.0

M8x1

R1512 470 75

40

20R

38.0

93

BB1

78

9.0

88

25

25

31.5

16.5

81.5

31.5

M8x1

R1512 490 55

40

40R

38.0

93

BB1

78

9.0

142

40

45

51.0

25.0

81.5

51.0

M8x1

R1512 510 75

50

5R

49.0

110

BB1

93

11.0

54

25

10

14.5

12.0

97.5

14.5

M8x1

R1512 540 75

50

10R

48.0

110

BB1

93

11.0

90

30

16

30.0

14.1

97.5

30.0

M8x1

R1512 550 55

50

12R

48.0

110

BB1

93

11.0

105

30

25

37.5

15.0

97.5

37.5

M8x1

R1512 570 76

50

20R

48.0

110

BB1

93

11.0

132

30

25

51.0

20.0

97.5

51.0

M8x1

R1512 590 55

50

40R

48.0

110

BB1

93

11.0

149

30

45

59.5

18.0

97.5

59.5

M8x1

R1512 640 75

63

10R

61.0

125

BB1

108

11.0

90

30

16

30.0

14.0

110.0

30.0

M8x1

R1512 670 76

63

20R

61.0

135

BB1

115

13.5

132

30

25

51.0

20.0

117.5

51.0

M8x1

R1512 690 55

63

40R

61.0

135

BB1

115

13.5

149

30

45

59.5

18.0

117.5

59.5

M8x1

R1512 740 75

80

10R

78.0

145

BB1

125

13.5

95

30

16

32.5

14.0

127.5

32.5

M8x1

R1512 770 56

80

20R

76.0

165

BB1

145

13.5

170

50

25

60.0

24.0

147.5

60.0

M8x1

*螺母 80 x 20R 配用滾珠螺桿最大長度可達2500mm,帶預緊。

*潤滑口的款式:

  L≤ 13mm時,平面

  L314mm時,沉孔。
