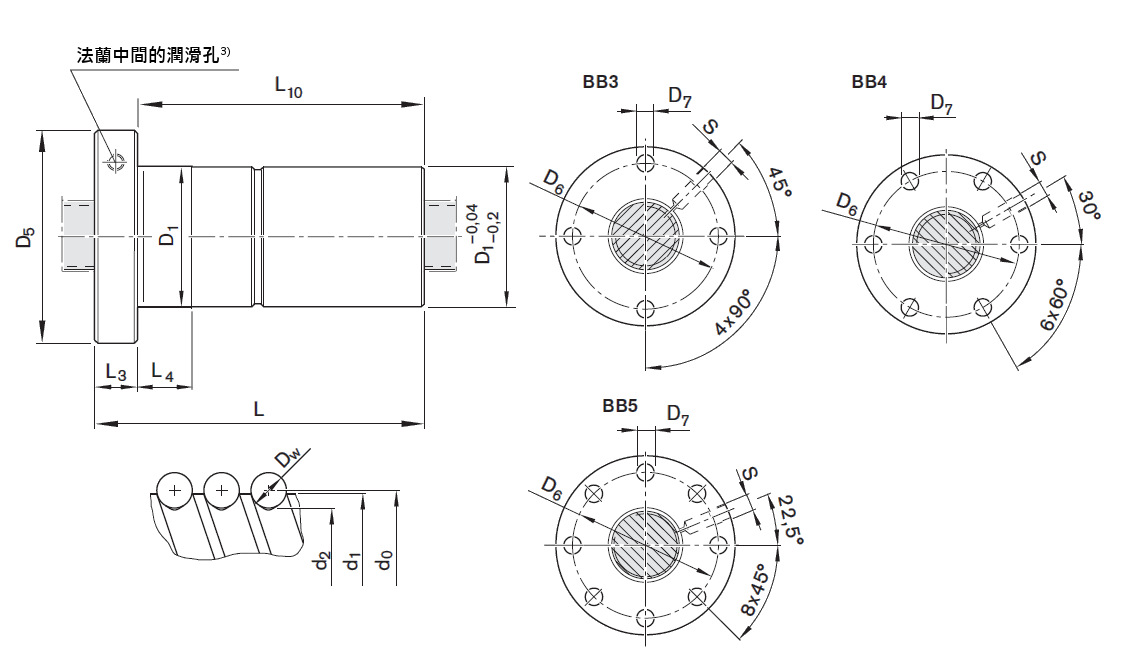

法蘭式雙螺母 FDM-E-S



型號

規格

尺寸(mm)

d0

P

d1

d2

D1

D5

類型

D6

D7

L

L3

L4

L9

L10

S3)

R1502 010 55

16

5R

15

12.9

28

48

BB2

38

5.5

72

12

10

44

60

M6

R1502 110 75

20

5R

19

16.9

36

58

BB2

47

6.6

82

12

10

51

70

M6

R1502 210 75

25

5R

24

21.9

40

62

BB2

51

6.6

82

12

10

55

70

M6

R1502 240 75

25

10R

24

21.9

40

62

BB2

51

6.6

120

12

16

55

108

M6

R1502 310 75

32

5R

31

28.4

50

80

BB2

65

9

88

13

10

71

75

M6

R1502 340 76

32

10R

31

27.9

50

80

BB2

65

9

146

13

16

71

133

M6

R1502 410 76

40

5R

39

36.4

63

93

BB1

78

9

100

15

10

81.5

85

M8x1

R1502 440 75

40

10R

38

33.8

63

93

BB1

78

9

140

15

16

81.5

125

M8x1

R1502 440 76

40

10R

38

33.8

63

93

BB1

78

9

180

15

16

81.5

165

M8x1

R1502 470 75

40

20R

38

33.8

63

93

BB1

78

9

175

15

25

81.5

160

M8x1

R1502 510 76

50

5R

49

46.4

75

110

BB1

93

11

100

15

10

97.5

85

M8x1

R1502 540 75

50

10R

48

43.8

75

110

BB1

93

11

140

18

16

97.5

122

M8x1

R1502 540 76

50

10R

48

43.8

75

110

BB1

93

11

180

18

16

97.5

162

M8x1

R1502 570 76

50

20R

48

43.4

75

110

BB1

93

11

255

18

25

97.5

237

M8x1

R1502 640 75

63

10R

61

56.8

90

125

BB1

108

11

140

22

16

110

118

M8x1

R1502 640 76

63

10R

61

56.8

90

125

BB1

108

11

180

22

16

110

158

M8x1

R1502 670 76

63

20R

61

56.4

95

135

BB1

115

13.5

255

22

25

117.5

233

M8x1

R1502 740 76

80

10R

78

73.3

105

145

BB1

125

13.5

190

22

16

127.5

168

M8x1

R1502 770 46

80

20R

76

67.0

125

165

BB1

145

13.5

340

25

25

147.5

315

M8x1


*螺母 80 x 20R配用滾珠螺桿最大長度可達2500mm,帶預緊。

*潤滑口的款式:

  L≤ 13mm時,平面

  L314mm時,沉孔。
