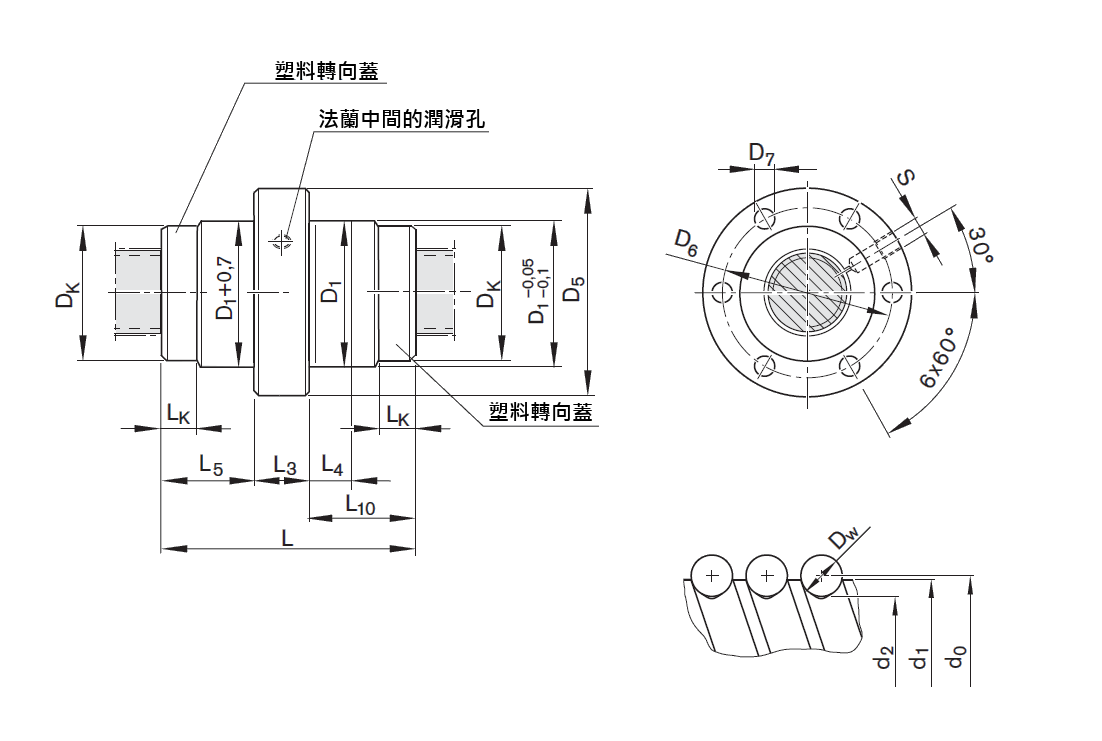

帶轉向蓋的法蘭式單螺母 FSZ-E-S
|
型號 |
規格 |
尺寸(mm) |
||||||||||||||
|
d0 |
P |
d1 |
d2 |
D1 |
D5 |
D6 |
D7 |
Dk |
L |
L3 |
L4 |
L5 |
L10 |
LK |
S |
|
|
R1502 110 41 |
20 |
5R |
19 |
16.9 |
33 |
58 |
45 |
6.6 |
32.5 |
40 |
10 |
6 |
15.0 |
15.0 |
8.5 |
M6 |
|
R1502 210 41 |
25 |
5R |
24 |
21.9 |
38 |
63 |
50 |
6.6 |
37.5 |
43 |
10 |
6 |
16.5 |
16.5 |
10.0 |
M6 |
|
R1502 240 41 |
25 |
10R |
24 |
21.9 |
38 |
63 |
50 |
6.6 |
37.5 |
62 |
10 |
16 |
16.0 |
16.0 |
10.0 |
M6 |
|
R1502 310 41 |
32 |
5R |
31 |
28.4 |
48 |
73 |
60 |
6.6 |
47.5 |
46 |
12 |
6 |
17.0 |
17.0 |
11.0 |
M6 |
|
R1502 340 41 |
32 |
10R |
31 |
27.9 |
48 |
73 |
60 |
6.6 |
47.5 |
77 |
12 |
16 |
20.0 |
20.0 |
11.0 |
M6 |
|
R1502 370 41 |
32 |
20R |
31 |
27.9 |
56 |
80 |
68 |
6.6 |
47.5 |
65 |
12 |
10 |
19.0 |
19.0 |
11.0 |
M6 |
|
R1502 410 41 |
40 |
5R |
39 |
36.4 |
56 |
80 |
68 |
6.6 |
55.5 |
52 |
14 |
8 |
18.5 |
18.5 |
11.5 |
M8x1 |
|
R1502 440 41 |
40 |
10R |
38 |
33.8 |
63 |
95 |
78 |
9.0 |
62.5 |
71 |
14 |
16 |
22.0 |
22.0 |
12.5 |
M8x1 |
|
R1502 470 41 |
40 |
20R |
38 |
33.8 |
63 |
95 |
78 |
9.0 |
62.5 |
89 |
14 |
25 |
22.0 |
22.0 |
12.5 |
M8x1 |
