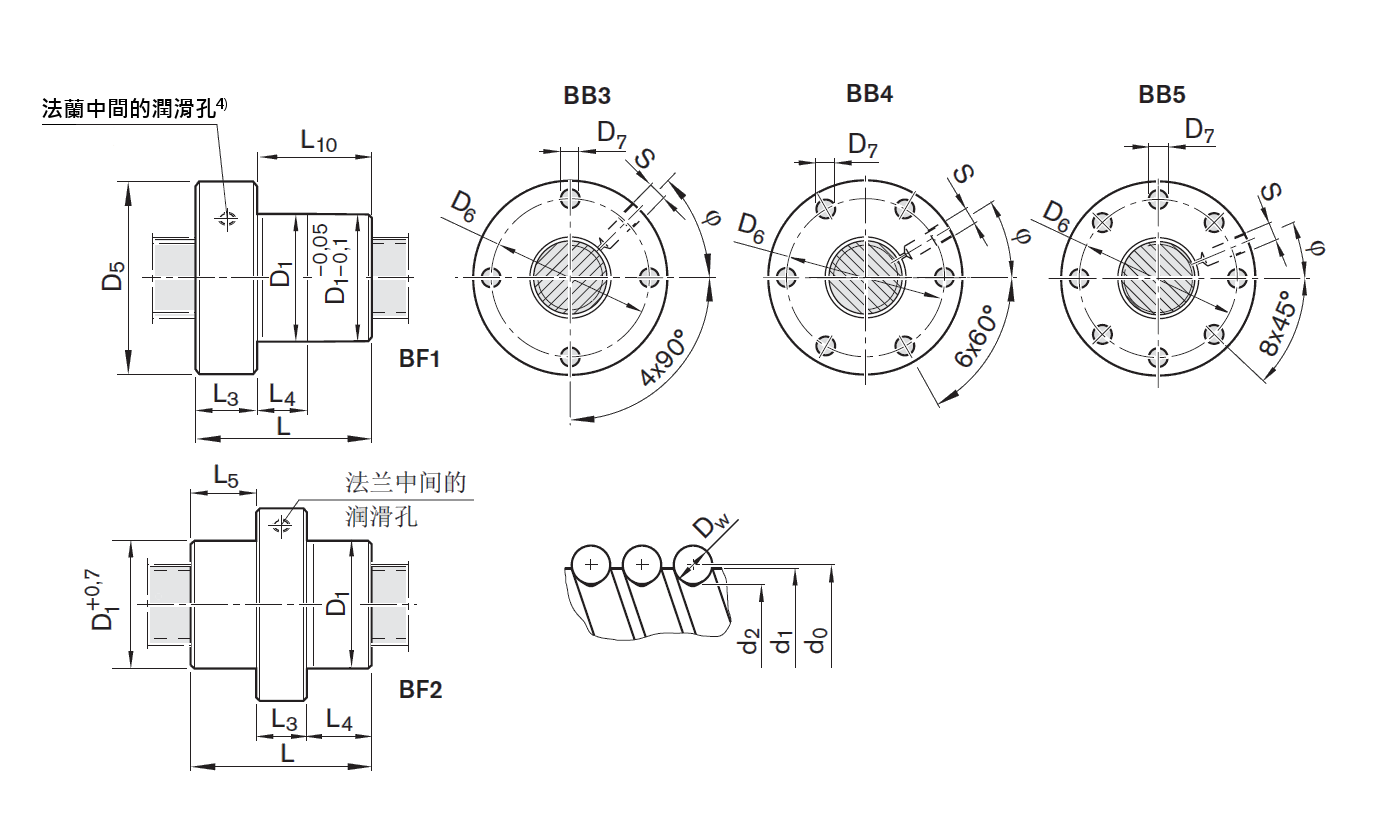

法蘭式單螺母 FEM-E-S


型號

規格

尺寸(mm)

d0

P

d1

d2

D1

D5

孔圖

D6

D7

類型

L

L3

L4

L5

L10

S3)

R1532 230 03

8

2.5R

7.5

6.3

16

30

BB4

23

3.4

BF1

16

8

8.0

-

8

M4

R1532 460 23

12

5R

11.4

9.9

24

40

BB4

32

4.5

BF1

28

12

10.0

-

16

M6

R1532 490 13

12

10R

11.4

9.9

24

40

BB4

32

4.5

BF1

33

12

16.0

-

21

M6

R1512 010 23

16

5R

15.0

12.9

28

53

BB3

40

6.6

BF1

38

12

10.0

-

26

M6

R1552 010 03

16

5L

15.0

12.9

28

53

BB3

40

6.6

BF1

38

12

10.0

-

26

M6

R1512 040 13

16

10R

15.0

12.9

28

53

BB3

40

6.6

BF1

45

12

16.0

-

33

M6

R1512 060 13

16

16R

15.0

12.9

33

58

BB4

45

6.6

BF2

45

15

15.0

15.0

-

M6

R1512 110 13

20

5R

19.0

16.9

33

58

BB4

45

6.6

BF1

40

12

10.0

-

28

M6

R1552 110 13

20

5L

19.0

16.9

33

58

BB4

45

6.6

BF1

40

12

10.0

-

28

M6

R1512 140 13

20

10R

19.0

16.9

33

58

BB4

45

6.6

BF1

60

12

16.0

-

48

M6

R1512 170 13

20

20R

19.0

16.7

38

63

BB4

50

6.6

BF2

57

20

18.5

18.5

-

M6

R1552 170 13

20

20L

19.0

16.7

38

63

BB4

50

6.6

BF2

57

20

18.5

18.5

-

M6

R1512 210 13

25

5R

24.0

21.9

38

63

BB4

50

6.6

BF1

45

12

10.0

-

33

M6

R1552 210 13

25

5L

24.0

21.9

38

63

BB4

50

6.6

BF1

45

12

10.0

-

33

M6

R1512 240 13

25

10R

24.0

21.9

38

63

BB4

50

6.6

BF1

64

12

16.0

-

52

M6

R1512 280 13

25

25R

24.0

21.4

48

73

BB4

60

6.6

BF2

70

25

22.5

22.5

-

M6

R1552 280 13

25

25L

24.0

21.4

48

73

BB4

60

6.6

BF2

70

25

22.5

22.5

-

M6

R1512 310 13

32

5R

31.0

28.4

48

73

BB4

60

6.6

BF1

48

13

10.0

-

35

M6

R1512 340 13

32

10R

31.0

27.9

48

73

BB4

60

6.6

BF1

77

13

16.0

-

64

M6

R1512 370 13

32

20R

31.0

27.9

56

80

BB4

68

6.6

BF1

64

15

25.0

-

49

M6

R1512 390 13

32

32R

31.0

27.9

56

80

BB4

68

6.6

BF2

88

20

34.0

34.0

-

M6

R1512 410 13

40

5R

39.0

36.4

56

80

BB4

68

6.6

BF1

54

15

10.0

-

39

M8x1

R1512 440 13

40

10R

38.0

33.8

63

95

BB4

78

9.0

BF1

70

15

16.0

-

55

M8x1

R1512 470 13

40

20R

38.0

33.8

63

95

BB4

78

9.0

BF1

88

15

25.0

-

73

M8x1

R1512 490 13

40

40R

38.0

33.8

72

110

BB4

90

11.0

BF2

102

40

31.0

31.0

-

M8x1

R1512 510 13

50

5R

49.0

46.4

68

98

BB4

82

9.0

BF1

54

15

10.0

-

39

M8x1

R1512 540 13

50

10R

48.0

43.8

72

110

BB4

90

11.0

BF1

90

18

16.0

-

72

M8x1

R1512 560 13

50

16R

48.0

43.8

72

110

BB4

90

11.0

BF1

128

18

25.0

-

110

M8x1

R1512 570 13

50

20R

48.0

43.4

85

125

BB4

105

11.0

BF1

92

22

25.0

-

70

M8x1

R1512 590 13

50

40R

48.0

43.4

85

125

BB4

105

11.0

BF1

109

22

45.0

-

87

M8x1

R1512 640 13

63

10R

61.0

56.8

85

125

BB4

105

11.0

BF1

90

22

16.0

-

68

M8x1

R1512 670 13

63

20R

61.0

56.4

95

140

BB4

118

14.0

BF1

92

22

25.0

-

70

M8x1

R1512 690 13

63

40R

61.0

56.4

95

140

BB4

118

14.0

BF1

109

22

45.0

-

87

M8x1

R1512 740 13

80

10R

78.0

73.3

105

150

BB4

125

14.0

BF1

95

22

16.0

-

73

M8x1

R1512 770 23

80

20R

76.0

67.0

125

180

BB5

152

18.0

BF1

170

25

25.0

-

145

M8x1

*潤滑口的款式:

  L≤ 13mm時,平面

  L314mm時,沉孔。

  對於規格 8 x 2.5,提供喇叭形潤滑嘴(DIN 3405)。
