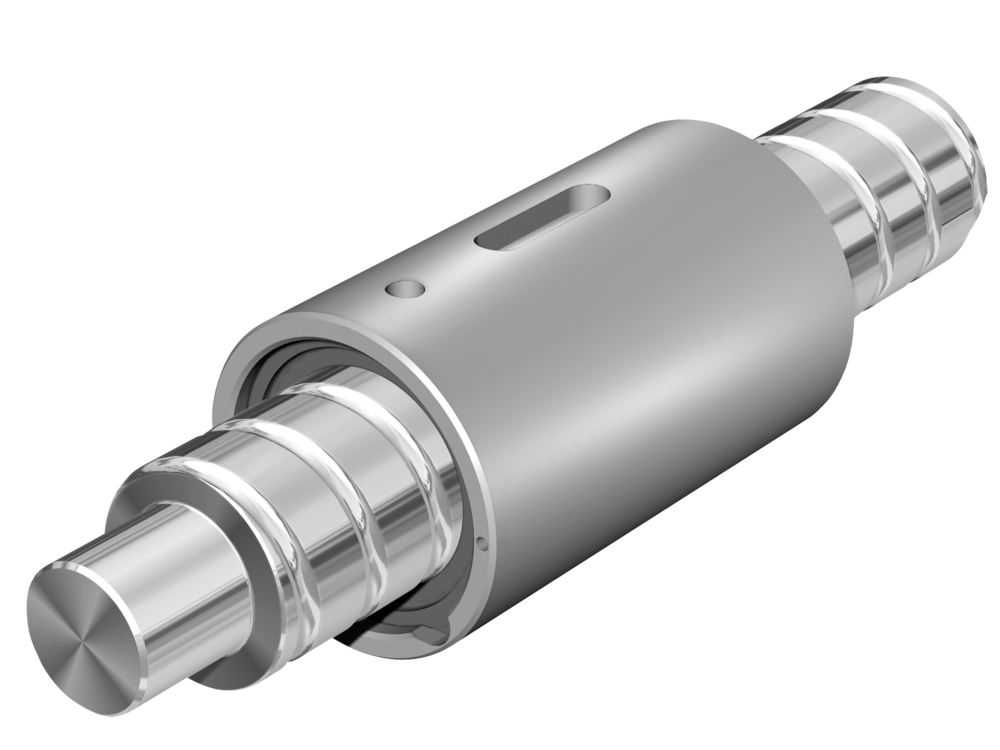

圓柱式單螺母 ZEM-E-S



型號

規格

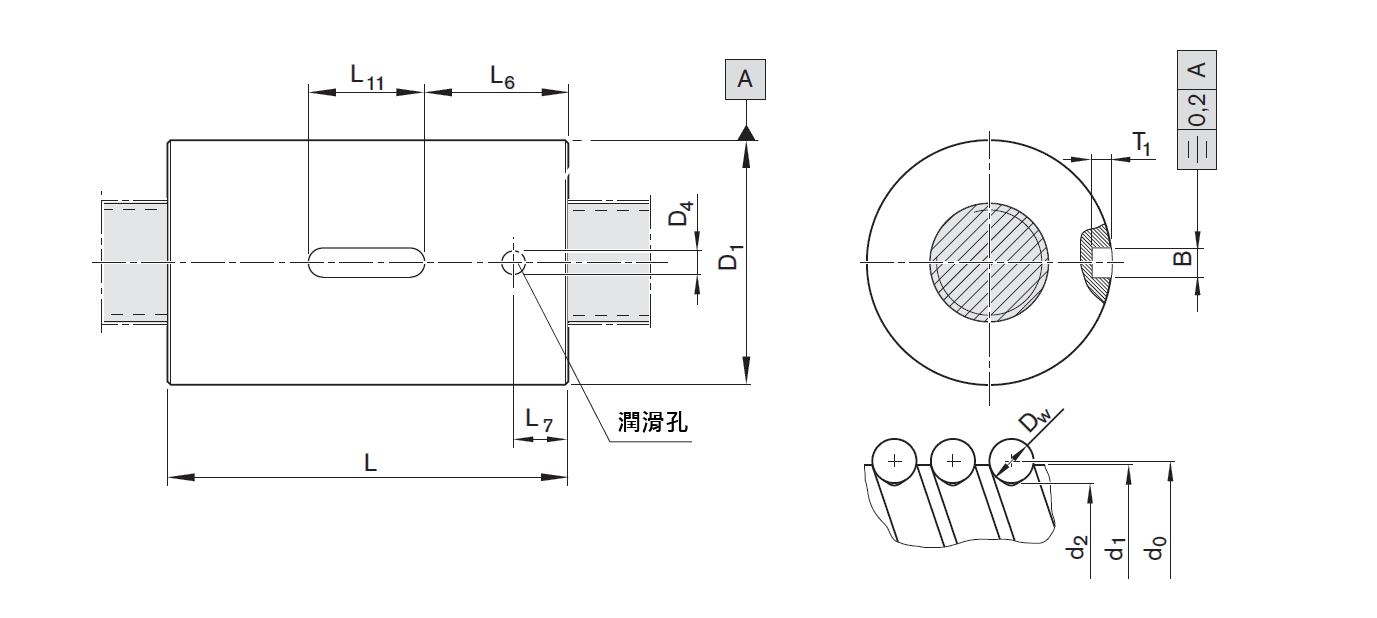

尺寸(mm)

d0

P

d1

d2

D1

D4

L

L6

L7

L11

B

T1

R1532 230 02

8

2.5R

7.5

6.3

16

2

16

5.0

3.5

6

3

1.8

R1532 422 01

12

2R

11.7

10.8

21

2

19

5.5

3.5

8

3

1.8

R1532 460 32

12

5R

11.4

9.9

24

2

28

8.0

3.5

12

5

3.0

R1532 462 25

12

5R

11.4

9.9

21

2

28

8.0

3.5

12

3

1.8

R1532 490 22

12

10R

11.4

9.9

24

2

33

10.5

3.5

12

5

3.0

R1532 492 00

12

10R

11.4

9.9

21

2

33

10.5

3.5

12

3

1.8

R1512 010 22

16

5R

15.0

12.9

28

4

35

14.5

9.5

12

5

3.0

R1552 010 02

16

5L

15.0

12.9

28

4

35

14.5

9.5

12

5

3.0

R1512 012 67

16

5R

15.0

12.9

33

2

45

14.5

9.5

16

5

3.0

R1512 040 12

16

10R

15.0

12.9

28

4

45

14.5

9.5

16

5

3.0

R1512 042 08

16

10R

15.0

12.9

38

4

54

19.0

9.5

16

5

3.0

R1512 042 09

16

10R

15.0

12.9

33

4

45

14.5

9.5

16

5

3.0

R1512 060 12

16

16R

15.0

12.9

33

4

45

14.5

9.5

16

5

3.0

R1512 062 10

16

16R

15.0

12.9

28

4

45

14.5

9.5

16

5

3.0

R1512 062 11

16

16R

15.0

12.9

38

4

61

22.5

9.5

16

5

3.0

R1512 110 12

20

5R

19.0

16.9

33

4

45

14.5

9.5

16

5

3.0

R1512 112 43

20

5R

19.0

16.9

38

4

40

21.0

9.5

12

5

3.0

R1512 140 12

20

10R

19.0

16.9

33

4

60

22.0

9.5

16

5

3.0

R1512 170 12

20

20R

19.0

16.7

38

4

64

22.0

9.5

20

5

3.0

R1512 170 52

20

20R

19.0

16.7

36

4

77

28.5

9.5

20

5

3.0

R1512 172 07

20

20R

19.0

16.7

38

4

77

28.5

9.5

20

5

3.0

R1512 210 12

25

5R

24.0

21.9

38

4

45

14.5

9.5

16

5

3.0

R1512 240 12

25

10R

24.0

21.9

38

4

64

22.0

9.5

20

5

3.0

R1512 280 12

25

25R

24.0

21.4

48

4

80

30.0

10.5

20

5

3.0

R1512 280 52

25

25R

24.0

21.4

40

4

95

37.5

10.5

20

5

3.0

R1512 310 12

32

5R

31.0

28.4

48

4

48

14.0

9.5

20

5

3.0

R1512 310 52

32

5R

31.0

28.4

50

4

48

14.0

9.5

20

5

3.0

R1512 340 12

32

10R

31.0

27.9

48

4

77

28.5

9.5

20

5

3.0

R1512 340 52

32

10R

31.0

27.9

50

4

77

28.5

9.5

20

5

3.0

R1512 370 12

32

20R

31.0

27.9

56

4

64

22.0

9.5

20

5

3.0

R1512 370 52

32

20R

31.0

27.9

50

4

84

32.0

9.5

20

5

3.0

R1512 390 12

32

32R

31.0

27.9

56

4

88

34.0

9.5

20

5

3.0

R1512 390 52

32

32R

31.0

27.9

50

4

120

50.0

9.5

20

5

3.0

R1512 410 12

40

5R

39.0

36.4

56

4

54

17.0

9.5

20

5

3.0

R1512 412 21

40

5R

39.0

36.4

63

4

70

25.0

14.0

20

5

3.0

R1512 440 12

40

10R

38.0

33.8

63

4

70

25.0

14.0

20

5

3.0

R1512 470 12

40

20R

38.0

33.8

63

4

88

34.0

14.0

20

5

3.0

R1512 490 12

40

40R

38.0

33.8

72

4

113

46.5

14.0

20

5

3.0

R1512 490 52

40

40R

38.0

33.8

63

4

142

61.0

14.0

20

5

3.0

R1512 510 12

50

5R

49.0

46.4

68

4

54

17.0

9.5

20

5

3.0

R1512 540 12

50

10R

48.0

43.8

72

5

90

35.0

14.0

20

5

3.0

R1512 570 12

50

20R

48.0

43.4

85

5

92

30.0

14.0

32

6

3.5

R1512 640 12

63

10R

61.0

56.8

85

5

90

29.0

14.0

32

6

3.5

*博世力士樂模組和驅動單元的專用螺母。
