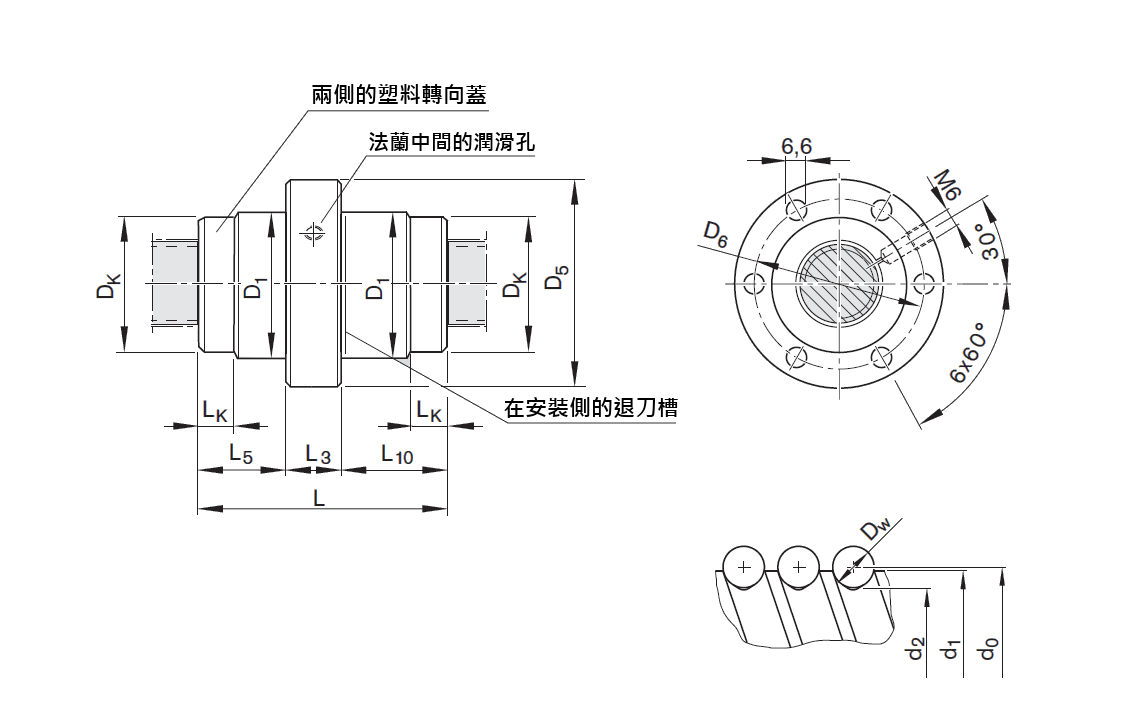

帶轉向蓋的法蘭式單螺母 FBZ-E-S
|
型號 |
規格 |
尺寸(mm) |
|||||||||||
|
d0 |
P |
d1 |
d2 |
D1 |
D5 |
D6 |
DK |
L |
L3 |
L5 |
L10 |
LK |
|
|
R2542 100 02 |
20 |
5R |
19 |
16.9 |
33 |
58 |
45 |
32.5 |
40 |
10 |
15.0 |
15.0 |
8.5 |
|
R2542 200 02 |
25 |
5R |
24 |
21.9 |
38 |
63 |
50 |
37.5 |
43 |
10 |
16.5 |
16.5 |
10.0 |
|
R2542 200 12 |
25 |
10R |
24 |
21.9 |
38 |
63 |
50 |
37.5 |
62 |
10 |
16.0 |
36.0 |
10.0 |
|
R2542 300 02 |
32 |
5R |
31 |
28.4 |
48 |
73 |
60 |
47.5 |
46 |
12 |
17.0 |
17.0 |
11.0 |
|
R2542 300 12 |
32 |
10R |
31 |
27.9 |
48 |
73 |
60 |
47.5 |
77 |
12 |
20.0 |
45.0 |
11.0 |
