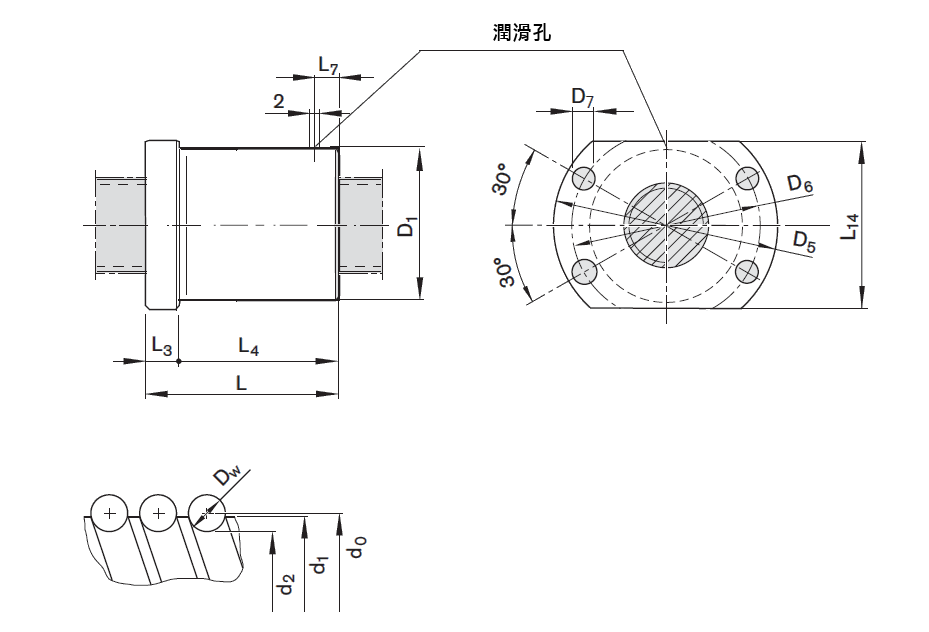

微型法蘭式單螺母FEM-E-B
|
型號 |
規格 |
尺寸(mm) |
|||||||||||
|
d0 |
P |
d1 |
d2 |
D1 |
D5 |
D6 |
D7 |
L |
L3 |
L4 |
L7 |
L14 |
|
|
R1532 100 06 |
6 |
1R |
6.0 |
5.3 |
12 |
24 |
18 |
3.4 |
19.5 |
3.5 |
16 |
3.5 |
16 |
|
R1532 120 06 |
6 |
2R |
6.0 |
5.3 |
12 |
24 |
18 |
3.4 |
22.5 |
3.5 |
19 |
3.0 |
16 |
|
R1532 200 06 |
8 |
1R |
8.0 |
7.3 |
16 |
28 |
22 |
3.4 |
22.0 |
6.0 |
16 |
3.5 |
19 |
|
R1532 220 06 |
8 |
2R |
8.0 |
7.0 |
16 |
28 |
22 |
3.4 |
25.0 |
6.0 |
19 |
3.0 |
19 |
|
R1532 230 06 |
8 |
2.5R |
7.5 |
6.3 |
16 |
28 |
22 |
3.4 |
16.0 |
6.0 |
10 |
3.0 |
19 |
|
R1532 420 06 |
12 |
2R |
11.7 |
10.8 |
20 |
37 |
29 |
4.5 |
19.0 |
8.0 |
11 |
2.5 |
24 |
|
R1532 460 06 |
12 |
5R |
11.4 |
9.9 |
22 |
37 |
29 |
4.5 |
28.0 |
8.0 |
20 |
6.0 |
24 |
|
R1532 490 06 |
12 |
10R |
11.4 |
9.9 |
22 |
37 |
29 |
4.5 |
33.0 |
8.0 |
25 |
8.0 |
24 |
