產品型號：R205B-1,R205B-8,R205B-2,R205B-7,R205B-3,R205B-4
|

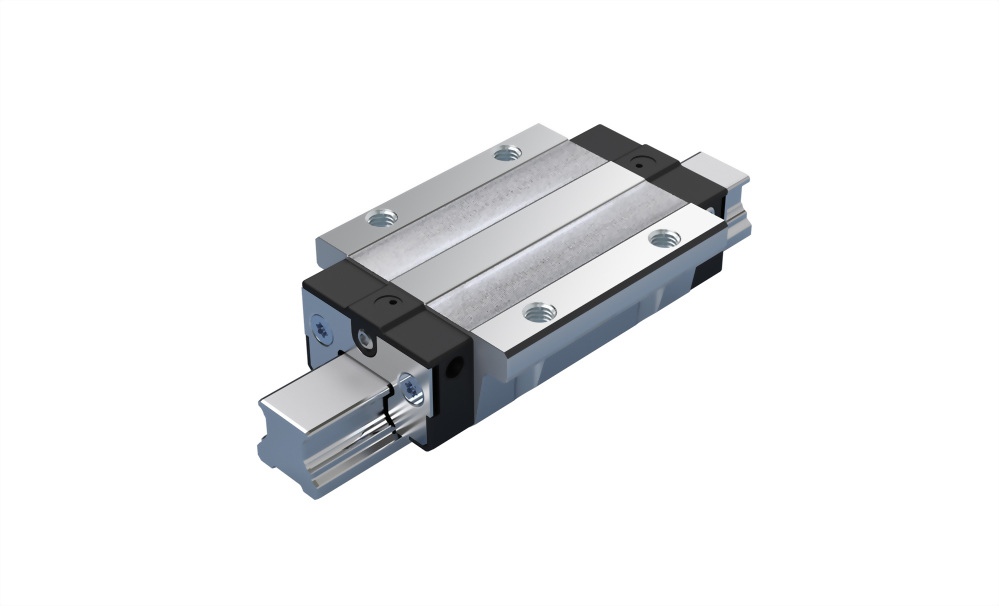

滾珠滑塊及規格 |
規格 |
尺寸(mm) |
||||||||
|
A |
A2 |
B+0.5 |
E1 |
E2 |
H |
N1 |
S2 |
V1 |
||
|
R205B-1 |
15 |
47.0 |
15.0 |
72.6 |
38.0 |
30.0 |
24.0 |
5.2 |
M5 |
5.0 |
|
R205B-8 |
20 |
63.0 |
20.0 |
91.0 |
53.0 |
40.0 |
30.0 |
7.7 |
M6 |
6.0 |
|
R205B-2 |
25 |
70.0 |
23.0 |
107.9 |
57.0 |
45.0 |
36.0 |
9.3 |
M8 |
7.5 |
|
R205B-7 |
30 |
90.0 |
28.0 |
119.7 |
72.0 |
52.0 |
42.0 |
11.0 |
M10 |
7.0 |
|
R205B-3 |
35 |
100.0 |
34.0 |
139.0 |
82.0 |
62.0 |
48.0 |
12.0 |
M10 |
8.0 |
|
R205B-4 |
45 |
120.0 |
45.0 |
174.0 |
100.0 |
80.0 |
60.0 |
15.0 |
M12 |
10.0 |
