標準法蘭型滾珠滑塊-FNS［R205A］

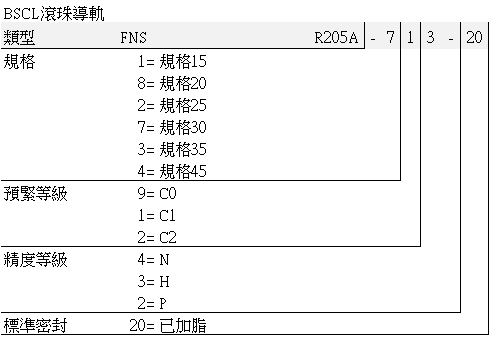

訂購範例
.png)
重點規格
|
滾珠滑塊及規格 |
規格 |
尺寸(mm) |
||||||||
|
A |
A2 |
B+0.5 |
E1 |
E2 |
H |
N1 |
S2 |
V1 |
||
|
R205A-1 |
15 |
47.0 |
15.0 |
58.2 |
38.0 |
30.0 |
24.0 |
5.2 |
M5 |
5.0 |
|
R205A-8 |
20 |
63.0 |
20.0 |
75.0 |
53.0 |
40.0 |
30.0 |
7.7 |
M6 |
6.0 |
|
R205A-2 |
25 |
70.0 |
23.0 |
86.2 |
57.0 |
45.0 |
36.0 |
9.3 |
M8 |
7.5 |
|
R205A-7 |
30 |
90.0 |
28.0 |
97.7 |
72.0 |
52.0 |
42.0 |
11.0 |
M10 |
7.0 |
|
R205A-3 |
35 |
100.0 |
34.0 |
110.5 |
82.0 |
62.0 |
48.0 |
12.0 |
M10 |
8.0 |
|
R205A-4 |
45 |
120.0 |
45.0 |
137.6 |
100.0 |
80.0 |
60.0 |
15.0 |
M12 |
10.0 |

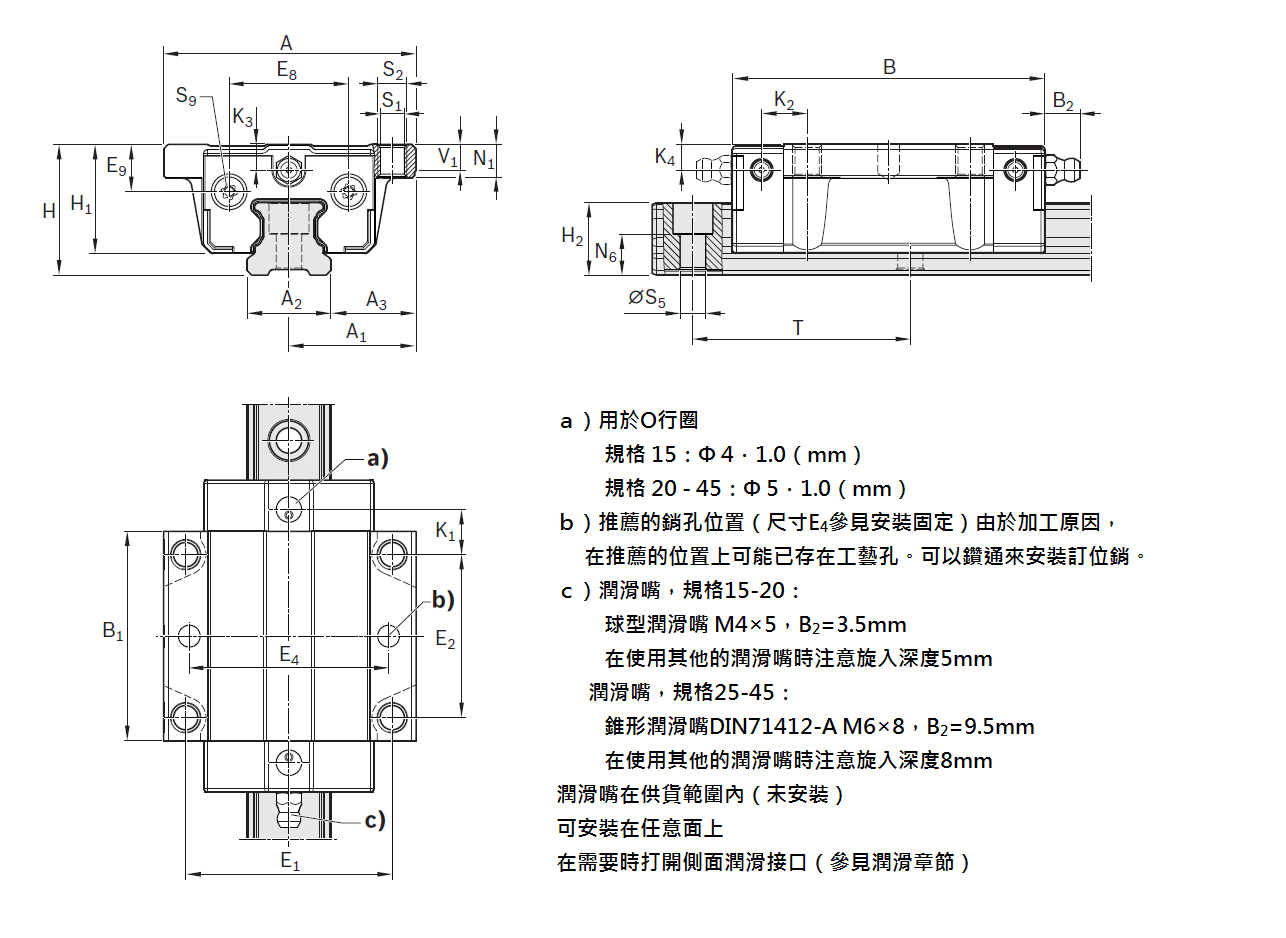

詳細規格
|
規格 |
15 |
20 |
25 |
30 |
35 |
45 |
|
尺寸(mm) |
||||||
|
A |
47.0 |
63.0 |
70.0 |
90.0 |
100.0 |
120.0 |
|
A1 |
23.50 |
31.50 |
35.00 |
45.00 |
50.00 |
60.00 |
|
A2 |
15.0 |
20.0 |
23.0 |
28.0 |
34.0 |
45.0 |
|
A3 |
16.00 |
21.50 |
23.50 |
31.00 |
33.00 |
37.50 |
|
B±0.5 |
58.2 |
75.0 |
86.2 |
97.7 |
110.5 |
137.5 |
|
B1 |
39.2 |
49.6 |
57.8 |
67.4 |
77.0 |
97.0 |
|
E1 |
38.0 |
53.0 |
57.0 |
72.0 |
82.0 |
100.0 |
|
E2 |
30.0 |
40.0 |
45.0 |
52.0 |
62.0 |
80.0 |
|
E8 |
20.5 |
29.0 |
33.0 |
42.0 |
50.0 |
61.0 |
|
E9 |
7.80 |
10.15 |
13.00 |
14.25 |
15.70 |
19.50 |
|
H |
24.0 |
30.0 |
36.0 |
42.0 |
48.0 |
60.0 |
|
H1 |
19.90 |
25.30 |
30.00 |
35.35 |
40.40 |
50.30 |
|
H2 |
14.10 |
17.00 |
20.00 |
23.00 |
26.50 |
33.00 |
|
K1 |
8.0 |
11.8 |
12.5 |
14.0 |
14.5 |
17.3 |
|
K2 |
9.1 |
11.8 |
12.5 |
14.7 |
16.2 |
19.5 |
|
K3 |
3.80 |
5.65 |
7.00 |
7.25 |
7.00 |
10.50 |
|
K4 |
3.80 |
5.65 |
7.00 |
7.25 |
7.00 |
10.50 |
|
N1 |
5.2 |
7.7 |
9.0 |
11.0 |
12.0 |
15.0 |
|
N6±0.5 |
8.6 |
10.0 |
11.3 |
12.0 |
15.5 |
17.0 |
|
S1 |
4.3 |
5.3 |
6.7 |
8.5 |
8.5 |
10.4 |
|
S2 |
M5 |
M6 |
M8 |
M10 |
M10 |
M12 |
|
S5 |
4.5 |
6.0 |
7.0 |
9.0 |
9.0 |
14.0 |
|
S9 |
M2.5×5 |
M2.5×6 |
M3×6.5 |
M3×6.5 |
M3×6.5 |
M3×6.5 |
|
T |
60.0 |
60.0 |
60.0 |
80.0 |
80.0 |
105.0 |
|
V1 |
5.0 |
6.0 |
7.5 |
7.0 |
8.0 |
10.0 |
|
質量(kg) |
||||||
|
m |
0.18 |
0.41 |
0.6 |
1.01 |
1.51 |
2.92 |
|
額定載荷(N) |
||||||
|
C501) |
11,500 |
18,400 |
27,500 |
39,300 |
54,100 |
78,100 |
|
C1002) |
9,100 |
14,600 |
21,800 |
31,200 |
42,900 |
62,000 |
|
C |
11,700 |
19,600 |
30,600 |
42,200 |
56,600 |
83,000 |
|
額定轉矩(Nm) |
||||||
|
Mt501) |
98 |
190 |
340 |
590 |
970 |
1,790 |
|
Mt1002) |
78 |
150 |
270 |
470 |
70 |
1,420 |
|
Mt0 |
100 |
210 |
380 |
640 |
1,030 |
1,930 |
|
ML501) |
79 |
160 |
280 |
450 |
720 |
1,320 |
|
ML1002) |
63 |
130 |
220 |
360 |
570 |
1,050 |
|
ML0 |
82 |
170 |
310 |
490 |
760 |
1,420 |
1) 額定動負荷和動轉矩基於5萬公尺行程。
2) 額定動負荷和動轉矩基於10萬公尺行程。
- 滑軌原材料可達 4000mm 長
- 全方位潤滑孔
-
配件種類：
1.前製潤滑油單元
2.前置密封件
3.鋼製刮刷板
4.潤滑轉接件 - 防塵塑料孔塞由上方安裝
- 互換的精度等級 N，H，P
- 3種預壓的類別 C0，C1，C2
- 國際標準尺寸 ISO12090 - 1
- 可訂製滑軌
