intelliSCAN

High-performance control

Thanks to powerful servo algorithms, these scanners fulfill the toughest demands for dynamics, flexibility and precision, while also delivering very good marking quality. intelliSCAN 's electronics provide comprehensive possibilities for remote diagnostics and communication between the scan system and control computer; all key status parameters are captured in real time.


Customer-specific tunings

Tunings can be adapted to customer-specific applications – e.g. to boost speed and/or positioning accuracy.


Smart scanning

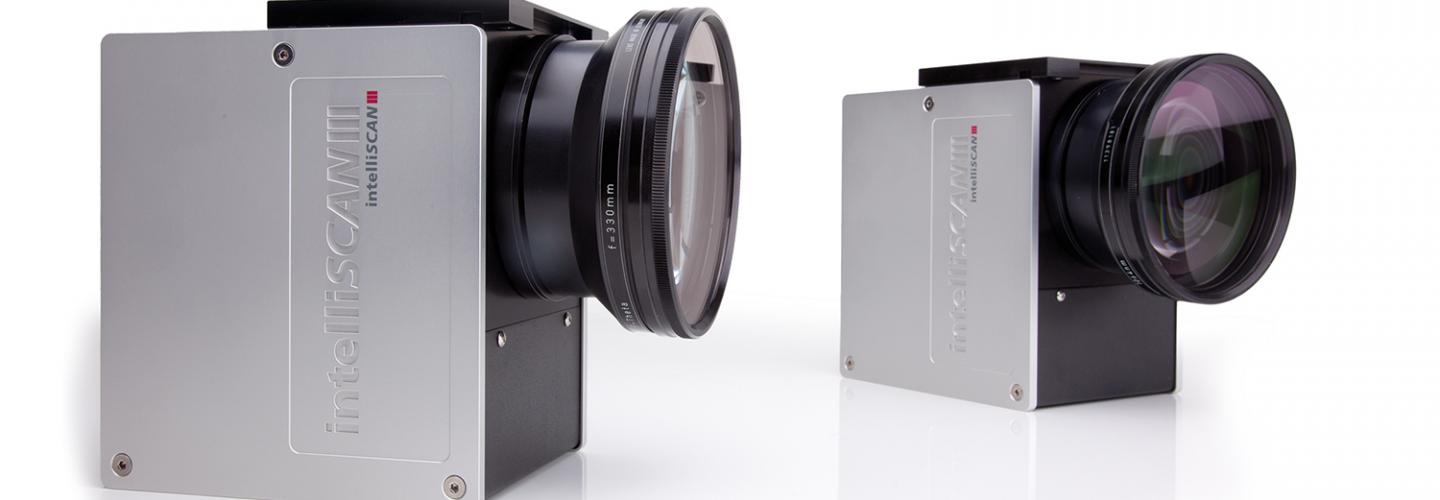

SCANLAB's intelliSCAN scan heads stand out with variant diversity and high dynamics. They're among the 2D scan systems that
enable deflecting and positioning of laser beams in the working
plane.

The intelliSCAN series allows versatile and flexible usage. It's designed for tasks with very high scan requirements across a broad
variety of application areas.

Key Features
• Highest dynamic performance
• Maximum flexibility due to switchable tunings
• Ideal adaptability enabled by a multitude of variants
• Comprehensive diagnostic and monitoring functions
• High long-term stability
• Water & air cooling option

Typical Applications
• Additive manufacturing (3D printing)
• Materials processing, micro-structuring
• Marking, welding, drilling
• Processing-on-the-fly
